Slim LED Aluminum Channel 15X6mm 1-3meter

Sale price $465.00 Regular price $3,600.00

Shipping calculated at checkout.

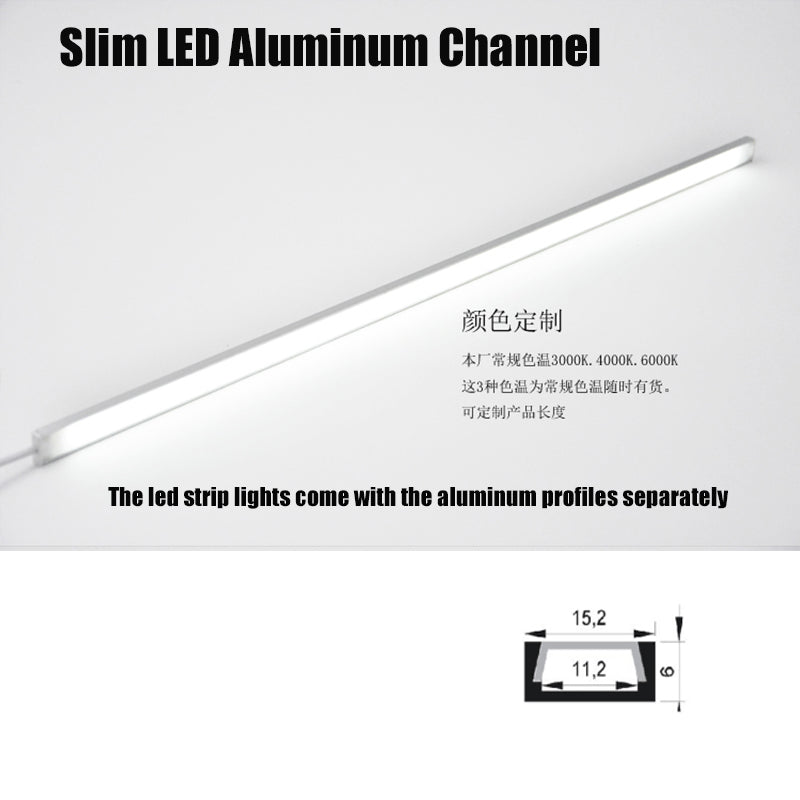

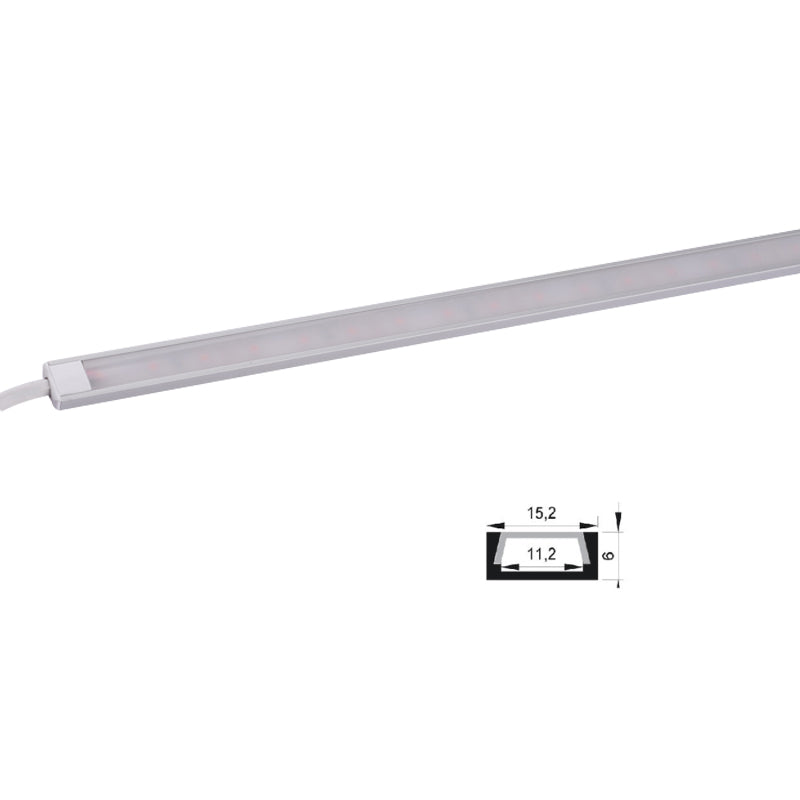

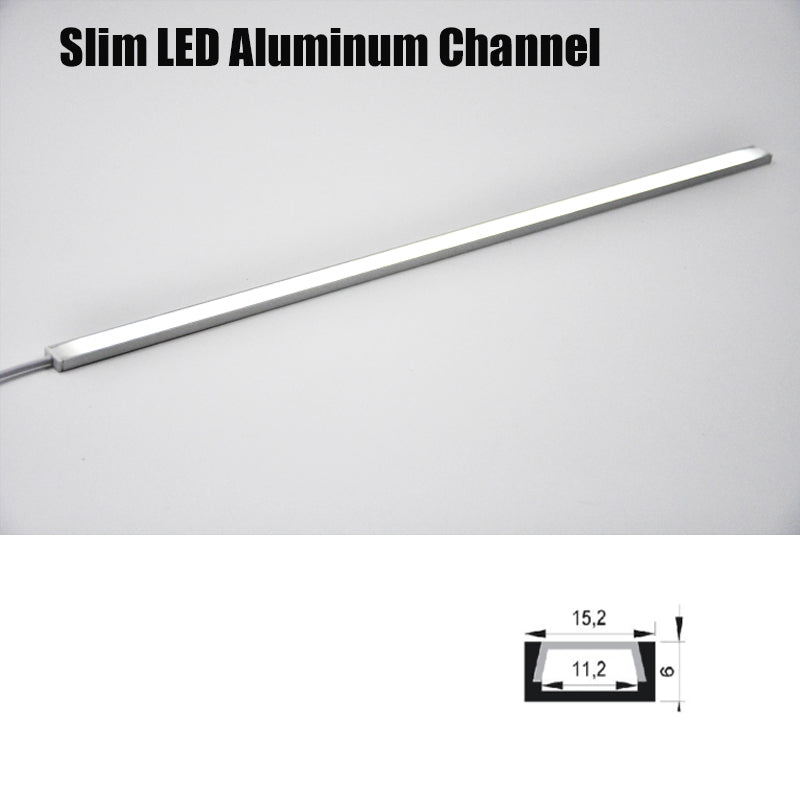

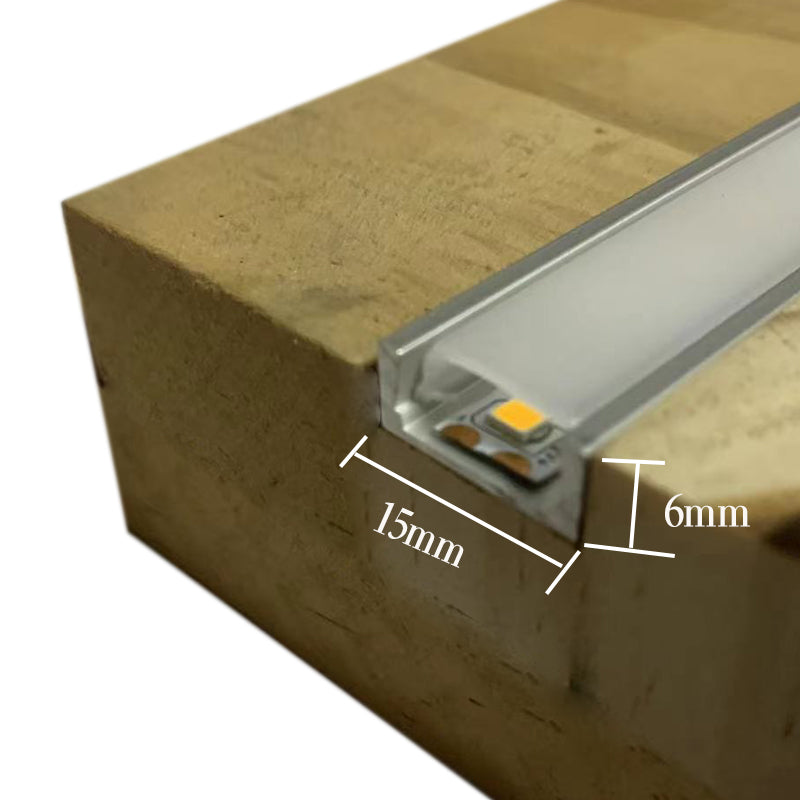

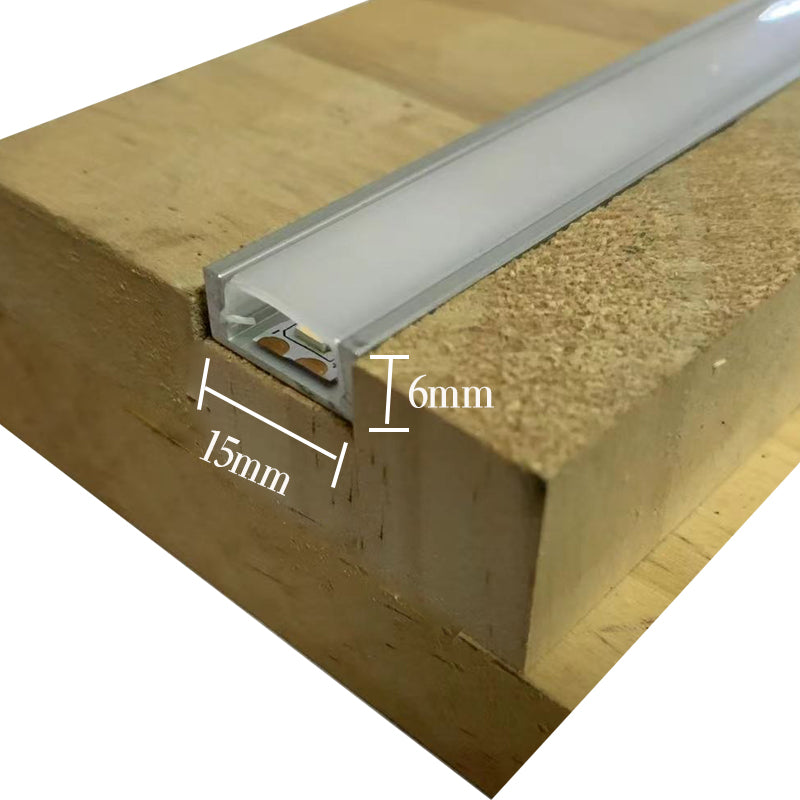

Belecome Slim LED Aluminum Channel comes with a ultra thin size 15x6mm. Rigid construction of anodized aluminum without flange for both recessed and surface mount LED lighting projects,perfect protection for LED strips. Belecome 1506 led aluminum profile has different length for choice from 1meters-3meters. This aluminum profile can work well with DC12V 2835 120led/m led strip lights. We provide it with aluminum profile separately.

Specifications:
* Configuration: U-Shape
* LED Strip Width: 8-10mm
* Channel Finish: Anodized Extruded aluminum
* Cover Material: Frosted Plastic
* Length: 10x1meter: 20x1meter: 10x2meter: 20x2meter: 10x3meter; 20x3meter;

* Package includes:

10x1meter:

  • 10 x 1m (3.3ft) Silver Aluminum U-channel
  • 10x Milky white PC cover
  • 20 x Metal Mounting clips
  • 10m 12V 2835 120led/m led strip lights (2x5m)
  • 20x End caps (10pcs in deaf and 10pcs with hole)
  • 20 x Screws

20x1meter:

  • 20 x 1m (3.3ft) Silver Aluminum U-channel
  • 20x Milky white PC cover
  • 40 x Metal Mounting clips
  • 20m 12V 2835 120led/m led strip lights (2x5m)
  • 40x End caps (20pcs in deaf and 20pcs with hole)
  • 40 x Screws

10x2meter:

  • 10 x 2m (6.6ft) Silver Aluminum U-channel
  • 10x Milky white PC cover
  • 40 x Metal Mounting clips
  • 20m 12V 2835 120led/m led strip lights (4x5m)
  • 20x End caps (10pcs in deaf and 10pcs with hole)
  • 40 x Screws

20x2meter:

  • 20 x 2m (6.6ft) Silver Aluminum U-channel
  • 20x Milky white PC cover
  • 80 x Metal Mounting clips
  • 40m 12V 2835 120led/m led strip lights (8x5m)
  • 40x End caps (20pcs in deaf and 20pcs with hole)
  • 80 x Screws

10x3meter:

  • 10 x 3m (9.9ft) Silver Aluminum U-channel
  • 10x Milky white PC cover
  • 60 x Metal Mounting clips
  • 30m 12V 2835 120led/m led strip lights (6x5m)
  • 20x End caps (10pcs in deaf and 10pcs with hole)
  • 60 x Screws

20x3meter:

  • 20 x 3m (9.9ft) Silver Aluminum U-channel
  • 20x Milky white PC cover
  • 120 x Metal Mounting clips
  • 60m 12V 2835 120led/m led strip lights (12x5m)
  • 40x End caps (20pcs in deaf and 20pcs with hole)
  • 120 x Screws

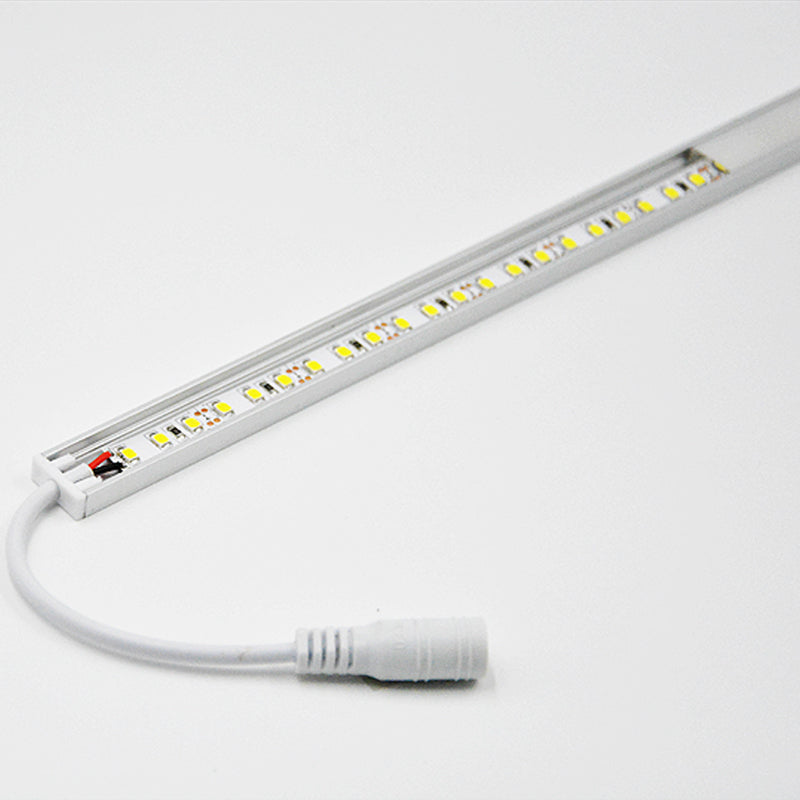

Including DC12V 2835 120led per meter Specification:

Item No,: SC-SMD2835X120F-V12

LED Type:  SMD2835
LED QTY.: 120LED/Meter     600led 5m 16.4ft
Input Voltage: 12V DC
Wattage (max): 14Watt/Meter
Cuttable: Every 6LED a unit can be cut

Lumen Flux: 100LM/W   1400lm/meter

CRI>80Ra

CCT:Cool White 6000-6500K  Warm White: 3000-3500K

PCB Width: 8mm

Go to our B2B Wholesale website: SEVEN COLORS LIGHTING CO.,LTD

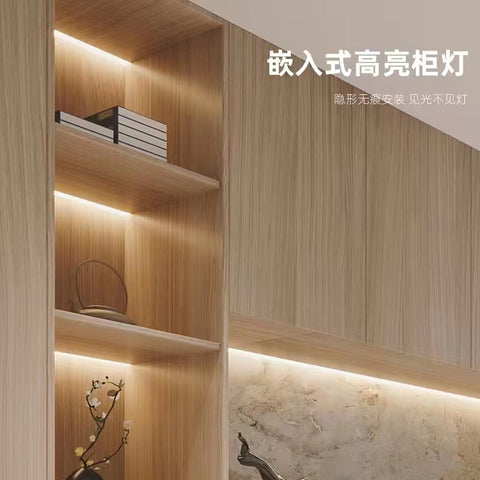

 Where can I use these led aluminum profile lights:

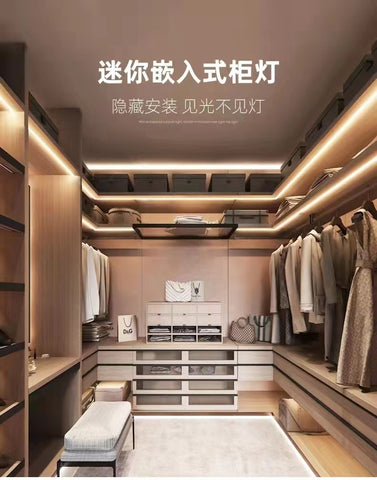

your wardrobe

led aluminum channel

Bookshelf

Ceilling, wall or wine cabinet everywhere

QA:

1. where is your location? Where do you send the goods from?

We are in Hong Kong, China and send all the goods from China Mainland.

2. Can you ship the goods to US, CA, AU or Europe?

We ship the goods to the whole world including USA, Canada, Australia, European Countries

3. How long does it takes to ship to US.European countries?

It takes about 35-45days to arrive in US after sending, to Eurpean countries, about 40-55days. To Asia, it takes around 25-40days. To other countries, 50-60days roughly.
